DXF Keşif

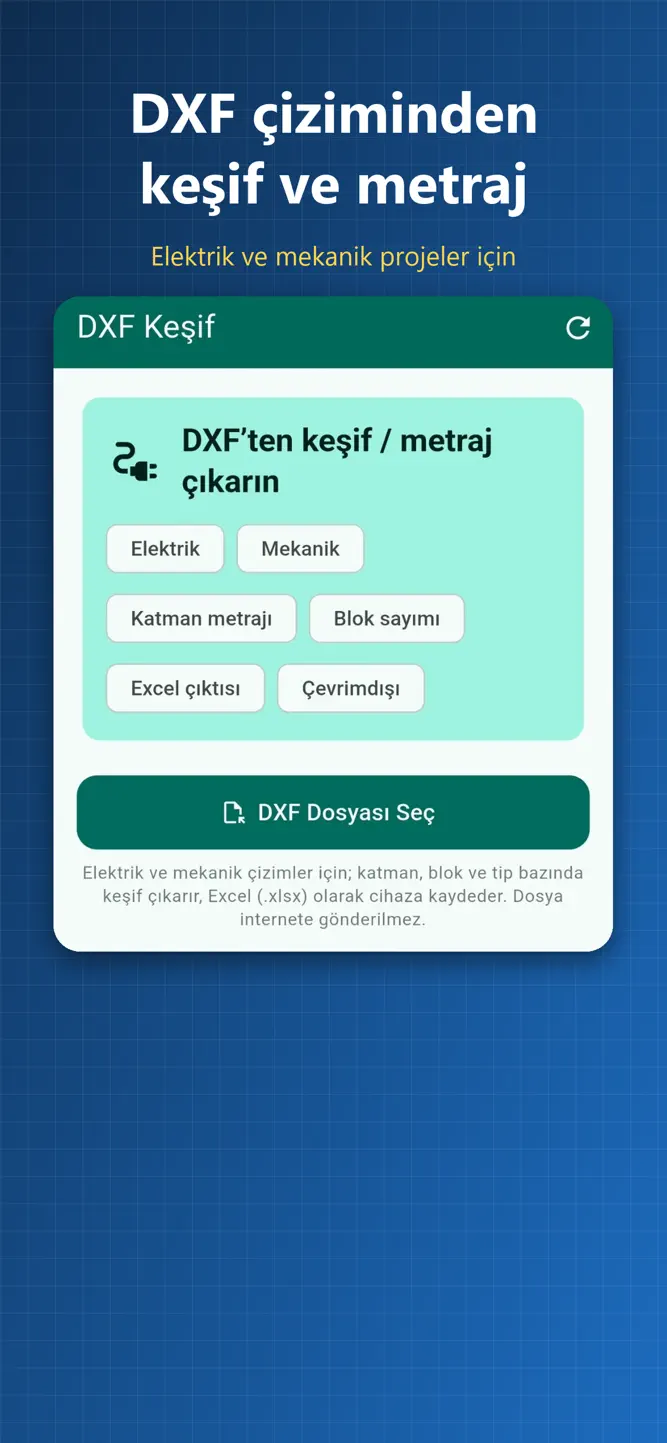

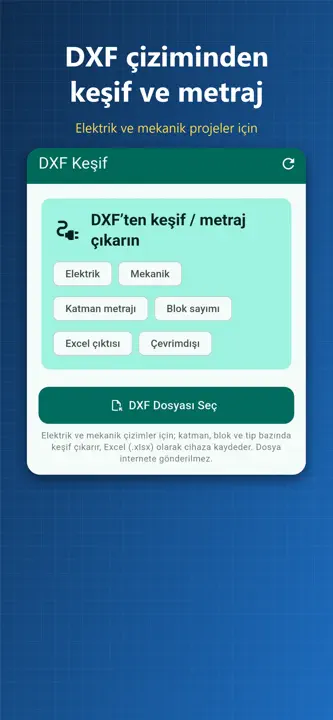

DXF Keşif is an engineering tool that extracts quantity take-offs (bill of quantities) from electrical and mechanical DXF drawings in seconds and saves the result to your phone as a well-organized Excel (.xlsx) file.

On site or while preparing a quote, no computer needed: send the drawing to your phone, open it in DXF Keşif, and your take-off is ready.

WHAT IT EXTRACTS

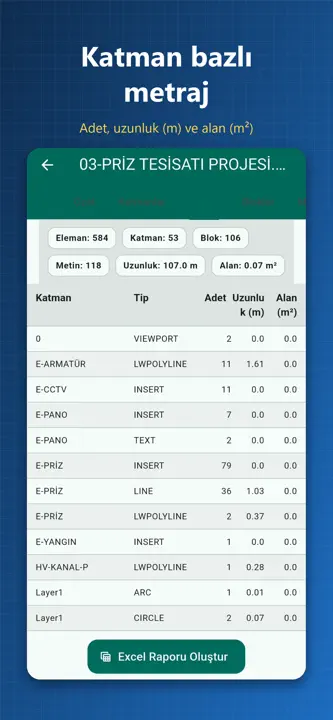

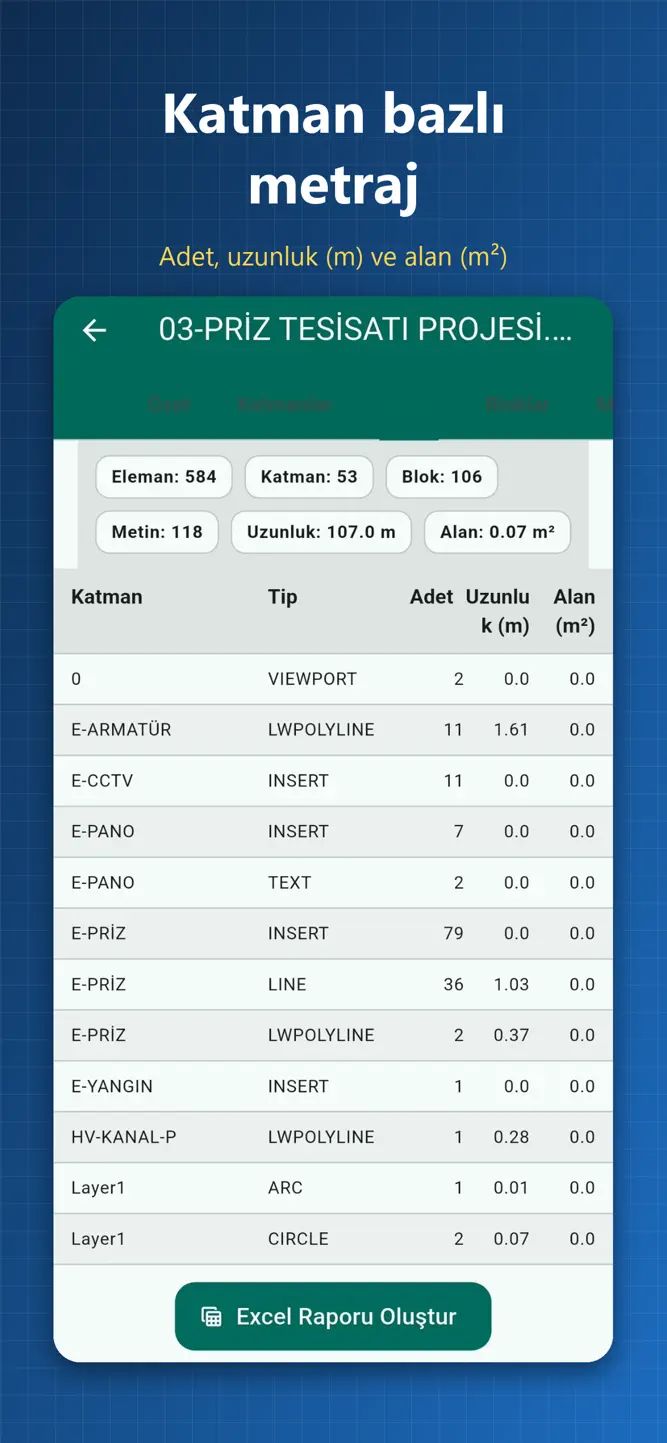

• Layer-based quantities: line lengths, areas and element counts per layer

• Block counts: luminaires, sockets, switches, panels, valves, devices and more

• Block attributes (ATTRIB): values such as power, brand and type listed per block

• Texts: TEXT/MTEXT annotations listed in clean form

• Drawing units (mm, cm, m) detected automatically; lengths reported in meters

SUPPORTED ENTITIES

LINE, POLYLINE, LWPOLYLINE, ARC, CIRCLE, SPLINE, ELLIPSE, SOLID, 3DFACE, INSERT (block), ATTRIB, TEXT, MTEXT

EXCEL REPORT (7 SHEETS)

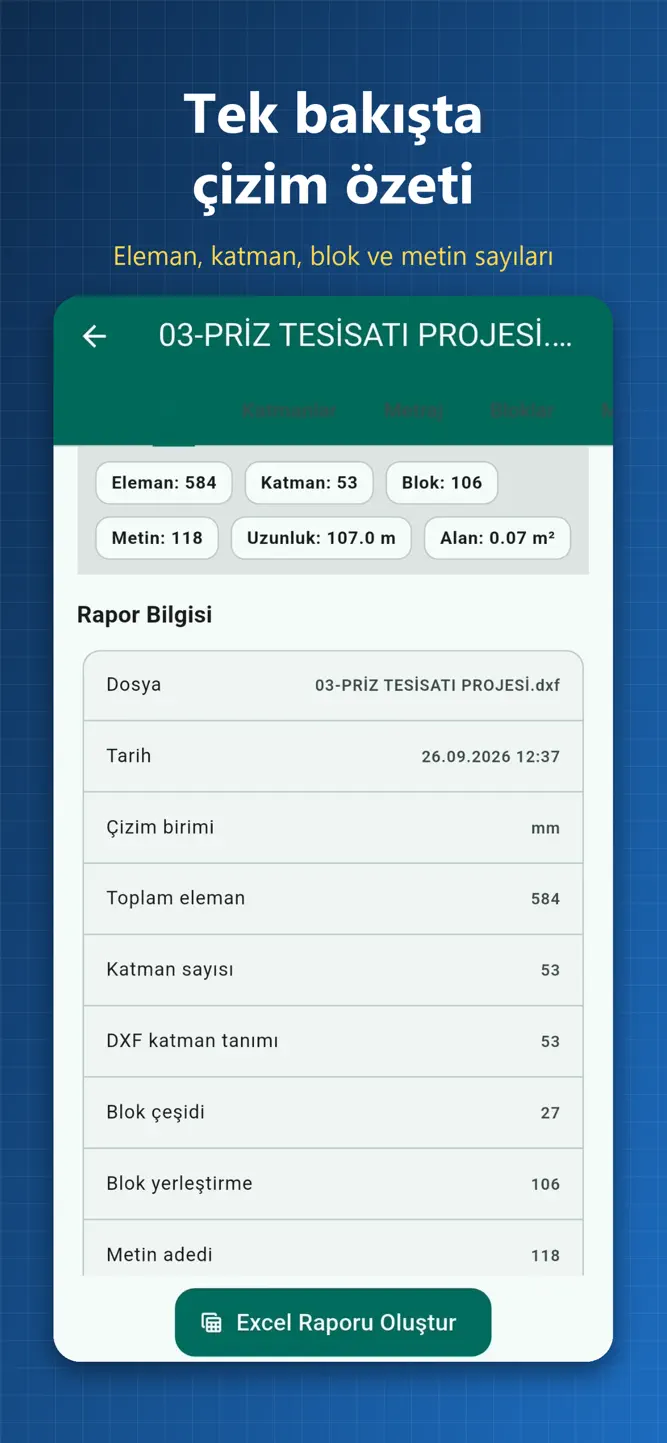

Summary · Layers · Quantities · Blocks · Texts · Detail · Info

The report is saved on your device; find it in the Files app or share it via email or messaging apps.

PRIVACY FIRST

• Your drawing is never sent to any server; everything is processed on your phone.

• No sign-up, no account.

• Internet is used only for ads; take-offs work offline.

• Drawings with Turkish characters (Windows-1254) are read correctly.

WHO IS IT FOR?

Electrical and mechanical engineers, technicians, contractors and subcontractors, estimators and project control teams.

IMPORTANT NOTE

Accuracy depends on the quality of the drawing. For best results, use DXF files whose layers and blocks follow engineering standards. Convert DWG files with "Save as DXF" in AutoCAD or similar software.

The app interface is in Turkish.
